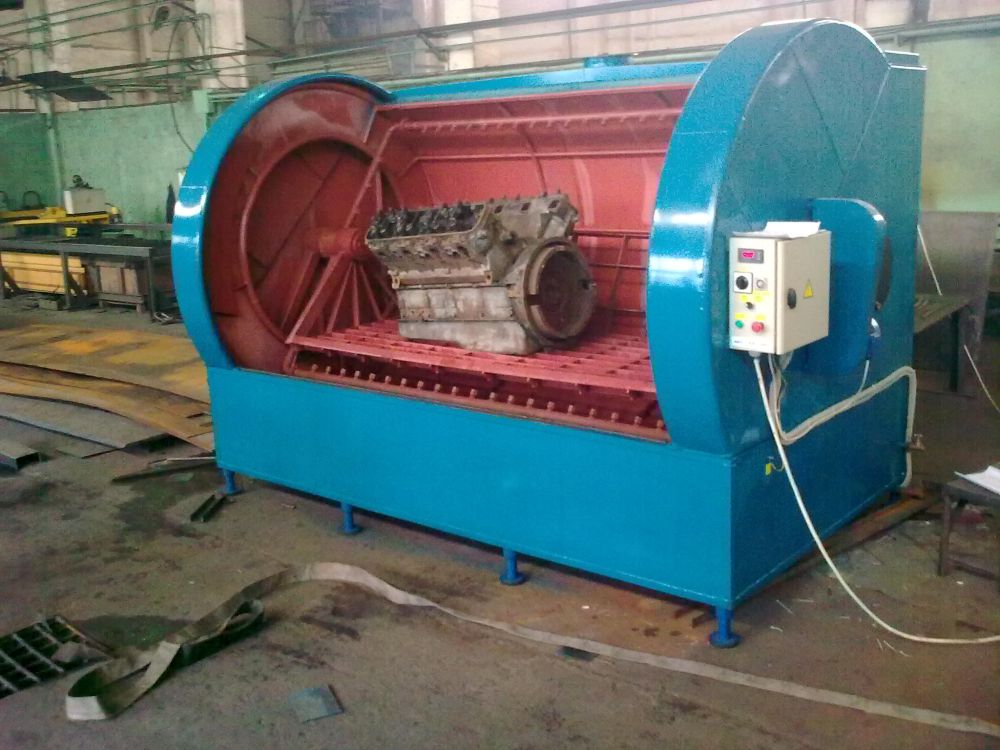

Cabinets parts washer М216Е2

— Is designed for washing aggregates, engines, transmissions and parts for trucks, buses, tractors, construction, agricultural and other machines;

— Internal dimensions of the working chamber of the installation allow for the washing of large units and units of heavy equipment without disassembly;

— Used to install a closed cycle of ecologically safe detergent, internal cleaning devices thus allow to separate the precipitated particles of impurities in the solid phase;

— A jet of hot cleaning solution under pressure ideally wash away oil and resinous deposits with machined parts and assemblies;

— The unit has two timer: timer waiting to start heating the washing solution from 0 to 300 hours and a timer cycle time from 0 to 60 minutes;

— Is internal dimensions of the working chamber of the installation allow for the washing of large units and units of heavy equipment without disassembly;

— Used to install a closed cycle of ecologically safe detergent



Technical data



Type washer	M216E2
Type	Stationary jet with a rotating collector
The weight of the wash units at the same time, Kg, no more than	1000
The cleaning fluid	1000
The cleaning fluid	VUK, MC - 6
The time of heating the liquid, hour, no more than	4
The temperature of the cleaning fluid, С	60
Power of electric heaters, кВт	18
Supply voltage, В	380
Pump delivery, м3/ч	50
Power of motor for pump, кВт	15
The number of baskets for details	2
Capacity of one basket for details, kgs	200
Length/width/height, mm	4050/2150/2470
Mass, kgs, no more than	2200



More detailed information on the equipment found at the link  https://yadi.sk/d/kC_bb0cIsfpYc
