Play detectors DG-015, DL-003

Used for play detection in bearings, joins, and other actuated parts of car's suspension and steering as well as for their wear rate estimation.

Main characteristics

• platforms of free play detector imitate all possible loads conveyed to car’s steering and suspension while it moves;

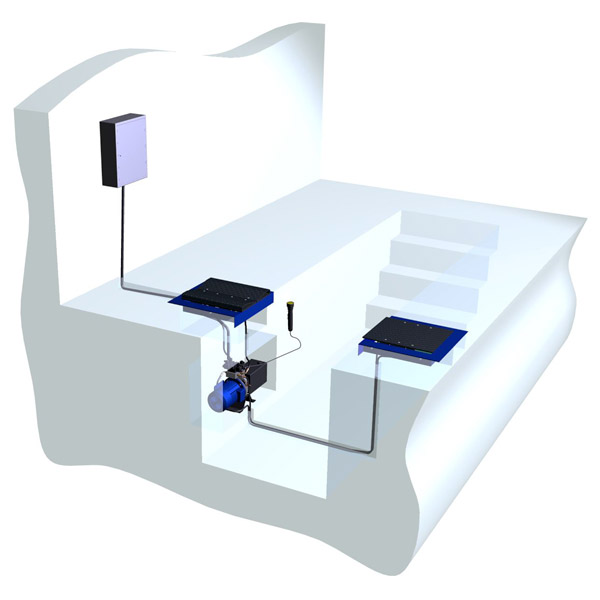

• free play detector can be installed on lift as well on inspection pit;станавливаться как на подъемнике, так и на смотровой канаве;
• hydraulic drive;
• uilt-in halogen lamp.

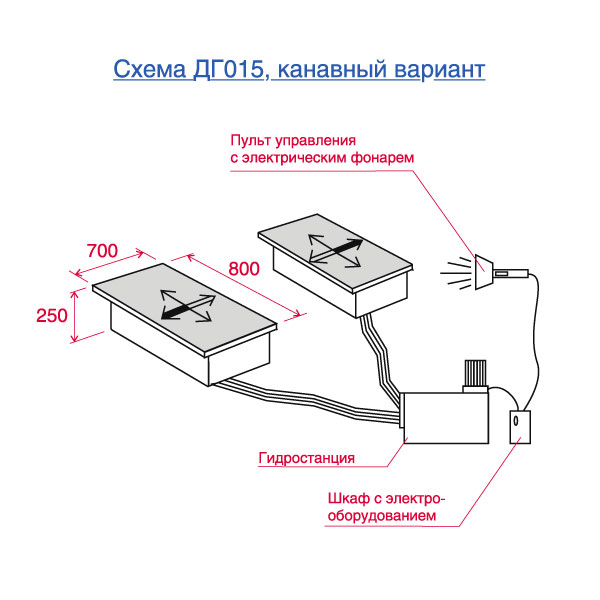

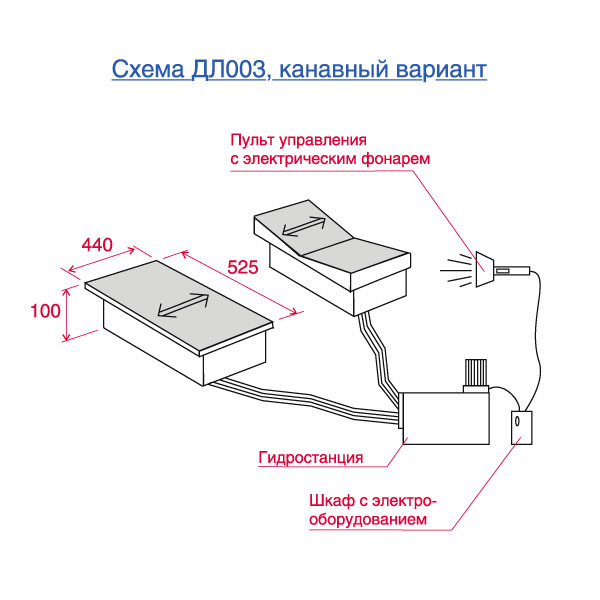

DG015 diagram pit version, DL003 diagram, pit version

Technical data

Free play detector model	DL-003	DG-015
Max. axle weight, kgs	3000	15000
Platform travel, mm	40	80
Power consumption, kW	1,5	3
Supply voltage, V	380	380
Dimensions of free play detector platform, mm	440/525/100	700/800/250
Free play detector weight without hydraulic unit, kgs	150	520
Charged hydraulic unit weight, kgs	80	140
