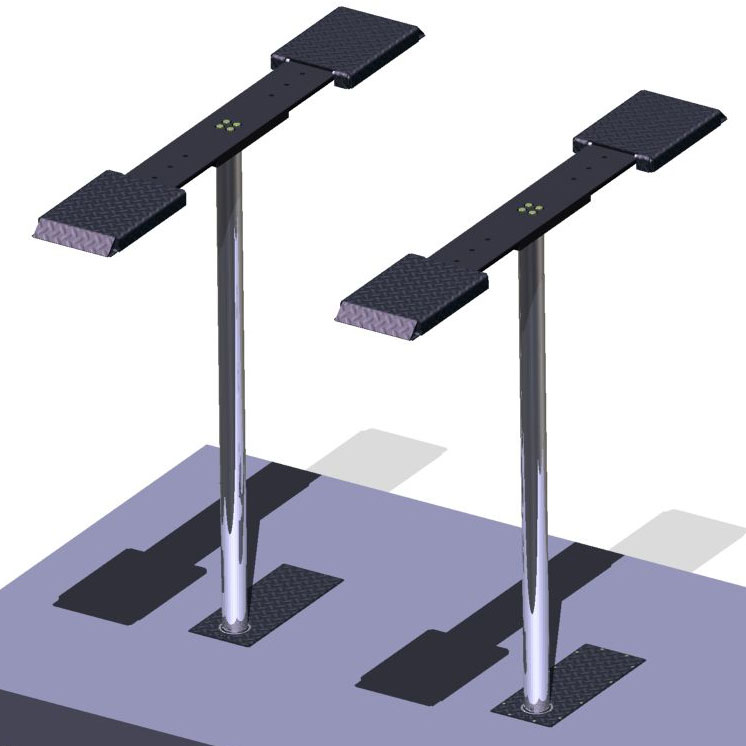

In-ground lift PV-3E
Used for car lift during maintenance and repair works.
- space saving of repair area;
- free access to doors and other car parts;
- modern hi-tech appearance is provided by chrome-plated plungers;
- durability is provided by use of proximity sensors, modern polyamide materials in friction pairs, and unique lubricating system. Whole carriage with working nut and sliders is automatically lubricated by dipping in oil bath in lower position;

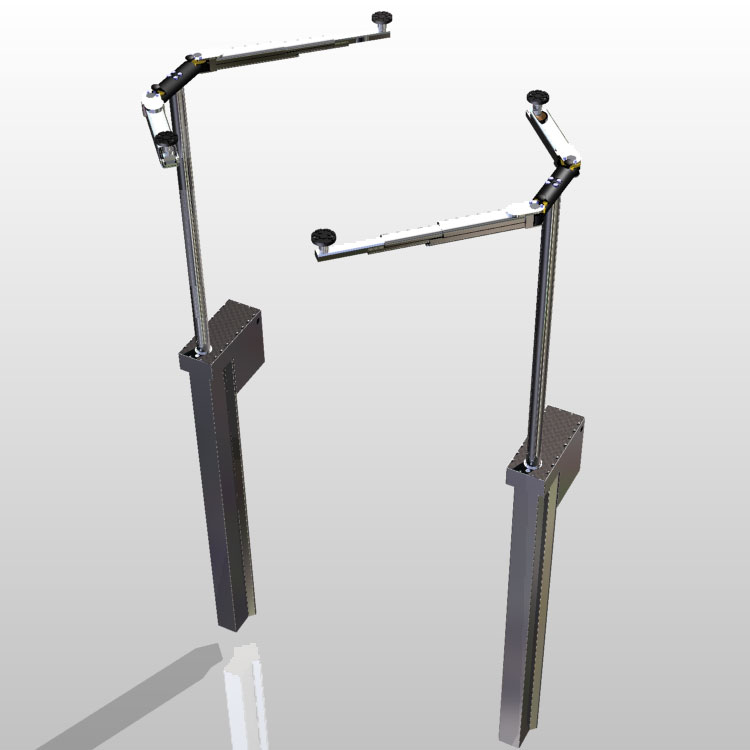

- Possible to install multi-purpose adapters to lift light trucks and cars which have framed body structure (optional);
- ease of maintenance – if necessary, whole mechanism in assembly can be taken from caisson;
- work safety is provided by electronic synchronization and self-diagnosis system with indication of malfunctions on LCD;
- free area under the car for personnel – each column has a separate caisson; the distance between plungers can be increased up to 2,300 mm.
Main characteristics
Technical data
| Lift model | PV 3Е |
|---|---|
| Type | Plunger, electromechanical |
| Number of columns | 2 |
| Power consumption, kW | 4,4 |
| Hoist height from floor level, mm | 2000 |
| Hoisting capacity, kgs | 3000 |
| Max. hoist duration, sec. | 53 |
| Distance between columns, mm | 1300-2300 |
| Installation pit dimensions, mm | 500/700/2800 |
| Lift weight, kgs | 700 |
| Grab method | in places with holes for jack |
