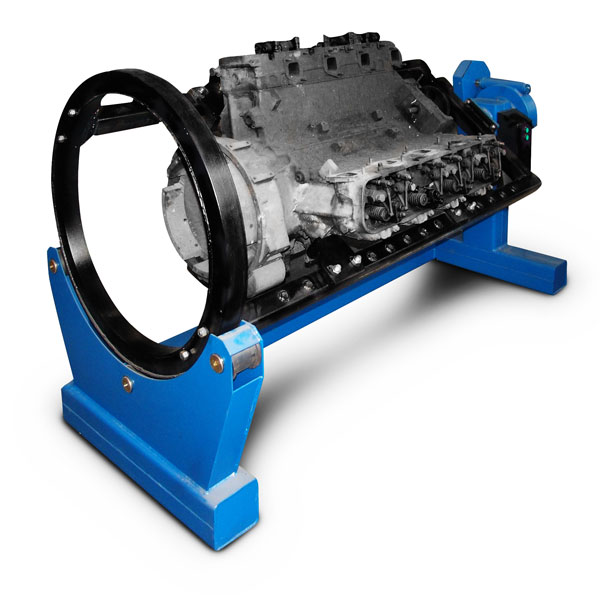

Engine repair stands R770E, R776E

Used for assembly and disassembly V-engines, gear boxes, rear axles, and other units weighing up 2,000 kilograms.

Main characteristics

• high flexibility is provided by multi-purpose adapters which allow to mount engines, gear boxes, rear axles or any other units;
• worm reducer allows to turn and clamp an engine in convenient position.

Technical data

Engine repair stands	R770E	R776E
Stand model	Electromechanic	Manual
Hoisting capacity, kgs	2000	2000
Turn method	by means of electromotor with worm reducer	manual by means of worm reducer
Engine rotation angle, deg.	360	360
Voltage, V	380	-
Installed capacity, kW	0,75	-
Max. spindle (support beam) rotation speed, min-1	2,5	-
Max. overall dimensions, mm:
- length	2467	2388
- depth	1060	1060
- height	1425	1425
Max. weight, kgs	445	385
